Plotting With PyQtGraph

One of the major fields where Python shines is in data science. For data exploration and cleaning, Python has many powerful tools, such as pandas and polar. For visualization, Python has Matplotlib.

When you're building GUI applications with PyQt, you can have access to all those tools directly from within your app. While it is possible to embed matplotlib plots in PyQt, the experience doesn't feel entirely native. So, for highly integrated plots, you may want to consider using the PyQtGraph library instead.

PyQtGraph is built on top of Qt's native QGraphicsScene, so it gives better drawing performance, particularly for live data. It also provides interactivity and the ability to customize plots according to your needs.

In this tutorial, you'll learn the basics of creating plots with PyQtGraph. You'll also explore the different plot customization options, including background color, line colors, line type, axis labels, and more.

Installing PyQtGraph

To use PyQtGraph with PyQt, you first need to install the library in your Python environment. You can do this using pip as follows:

$ python -m pip install pyqtgraph

Once the installation is complete, you will be able to import the module into your Python code. So, now you are ready to start creating plots.

Creating a PlotWidget Instance

In PyQtGraph, all plots use the PlotWidget class. This widget provides a canvas on which we can add and configure many types of plots. Under the hood, PlotWidget uses Qt's QGraphicsScene class, meaning that it's fast, efficient, and well-integrated with the rest of your app.

The code below shows a basic GUI app with a single PlotWidget in a QMainWindow:

import pyqtgraph as pg
from PyQt5 import QtWidgets

class MainWindow(QtWidgets.QMainWindow):
    def __init__(self):
        super().__init__()

        # Temperature vs time plot
        self.plot_graph = pg.PlotWidget()
        self.setCentralWidget(self.plot_graph)
        time = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
        temperature = [30, 32, 34, 32, 33, 31, 29, 32, 35, 30]
        self.plot_graph.plot(time, temperature)

app = QtWidgets.QApplication([])
main = MainWindow()
main.show()
app.exec()

In this short example, you create a PyQt app with a PlotWidget as its central widget. Then you create two lists of sample data for time and temperature. The final step to create the plot is to call the plot() methods with the data you want to visualize.

The first argument to plot() will be your x coordinate, while the second argument will be the y coordinate.

In all the examples in this tutorial, we import PyQtGraph using import pyqtgraph as pg. This is a common practice in PyQtGraph examples to keep things tidy and reduce typing.

If you run the above application, then you'll get the following window on your screen:

Basic PyQtGraph plot: Temperature vs time.

PyQtGraph's default plot style is quite basic — a black background with a thin (barely visible) white line. Fortunately, the library provides several options that will allow us to deeply customize our plots.

In the examples in this tutorial, we'll create the PyQtGraph widget in code. To learn how to embed PyQtGraph plots when using Qt Designer, check out Embedding custom widgets from Qt Designer.

In the following section, we'll learn about the options we have available in PyQtGraph to improve the appearance and usability of our plots.

Customizing PyQtGraph Plots

Because PyQtGraph uses Qt's QGraphicsScene to render the graphs, we have access to all the standard Qt line and shape styling options for use in plots. PyQtGraph provides an API for using these options to draw plots and manage the plot canvas.

Below, we'll explore the most common styling features that you'll need to create and customize your own plots with PyQtGraph.

Background Color

Beginning with the app skeleton above, we can change the background color by calling setBackground() on our PlotWidget instance, self.graphWidget. The code below sets the background to white by passing in the string "w":

import pyqtgraph as pg
from PyQt5 import QtWidgets

class MainWindow(QtWidgets.QMainWindow):
    def __init__(self):
        super().__init__()

        # Temperature vs time plot
        self.plot_graph = pg.PlotWidget()
        self.setCentralWidget(self.plot_graph)
        self.plot_graph.setBackground("w")
        time = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
        temperature = [30, 32, 34, 32, 33, 31, 29, 32, 35, 45]
        self.plot_graph.plot(time, temperature)

app = QtWidgets.QApplication([])
main = MainWindow()
main.show()
app.exec()

Calling setBackground() with "w" as an argument changes the background of your plot to white, as you can see in the following window:

PyQtGraph plot with a white background.

There are a number of colors available using single letters, as we did in the example above. They're based on the standard colors used in Matplotlib. Here are the most common codes:

In addition to these single-letter codes, we can create custom colors using the hexadecimal notation as a string:

self.plot_graph.setBackground("#bbccaa")  # Hex

We can also use RGB and RGBA values passed in as 3-value and 4-value tuples, respectively. We must use values in the range from 0 to 255:

self.plot_graph.setBackground((100, 50, 255))  # RGB each 0-255
self.plot_graph.setBackground((100, 50, 255, 25))  # RGBA (A = alpha opacity)

The first call to setBackground() takes a tuple representing an RGB color, while the second call takes a tuple representing an RGBA color.

We can also specify colors using Qt's QColor class if we prefer it:

from PyQt5 import QtGui
# ...

self.plot_graph.setBackground(QtGui.QColor(100, 50, 254, 25))

Using QColor can be useful when you're using specific QColor objects elsewhere in your application and want to reuse them in your plots. For example, say that your app has a custom window background color, and you want to use it in the plots as well. Then you can do something like the following:

color = self.palette().color(QtGui.QPalette.Window)
# ...

self.plot_graph.setBackground(color)

In the first line, you get the GUI's background color, while in the second line, you use that color for your plots.

Line Color, Width, and Style

Plot lines in PyQtGraph are drawn using the Qt QPen class. This gives us full control over line drawing, as we would have in any other QGraphicsScene drawing. To use a custom pen, you need to create a new QPen instance and pass it into the plot() method.

In the app below, we use a custom QPen object to change the line color to red:

from PyQt5 import QtWidgets

import pyqtgraph as pg

class MainWindow(QtWidgets.QMainWindow):
    def __init__(self):
        super().__init__()

        # Temperature vs time plot
        self.plot_graph = pg.PlotWidget()
        self.setCentralWidget(self.plot_graph)
        self.plot_graph.setBackground("w")
        pen = pg.mkPen(color=(255, 0, 0))
        time = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
        temperature = [30, 32, 34, 32, 33, 31, 29, 32, 35, 45]
        self.plot_graph.plot(time, temperature, pen=pen)

app = QtWidgets.QApplication([])
main = MainWindow()
main.show()
app.exec()

Here, we create a QPen object, passing in a 3-value tuple that defines an RGB red color. We could also define this color with the "r" code or with a QColor object. Then, we pass the pen to plot() with the pen argument.

PyQtGraph plot with a red plot line.

By tweaking the QPen object, we can change the appearance of the line. For example, you can change the line width in pixels and the style (dashed, dotted, etc.), using Qt's line styles.

Update the following lines of code in your app to create a red, dashed line with 5 pixels of width:

from PyQt5 import QtCore, QtWidgets
# ...

pen = pg.mkPen(color=(255, 0, 0), width=5, style=QtCore.Qt.DashLine)

The result of this code is shown below, giving a 5-pixel, dashed, red line:

PyQtGraph plot with a red, dashed, and 5-pixel line

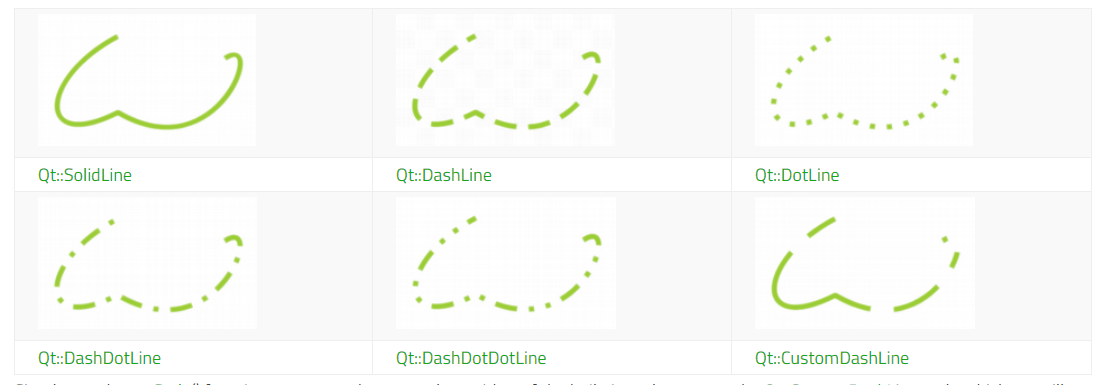

You can use all other Qt's line styles, including Qt.SolidLine, Qt.DotLine, Qt.DashDotLine, and Qt.DashDotDotLine. Examples of each of these lines are shown in the image below:

Qt's line styles.

To learn more about Qt's line styles, check the documentation about pen styles. There, you'll all you need to deeply customize the lines in your PyQtGraph plots.

Line Markers

For many plots, it can be helpful to use point markers in addition or instead of lines on the plot. To draw a marker on your plot, pass the symbol you want to use as a marker when calling plot(). The following example uses the plus sign as a marker:

self.plot_graph.plot(hour, temperature, symbol="+")

In this line of code, you pass a plus sign to the symbol argument. This tells PyQtGraph to use that symbol as a marker for the points in your plot.

If you use a custom symbol, then you can also use the symbolSize, symbolBrush, and symbolPen arguments to further customize the marker.

The value passed as symbolBrush can be any color, or QBrush instance, while symbolPen can be any color or a QPen instance. The pen is used to draw the shape, while the brush is used for the fill.

Go ahead and update your app's code to use a blue marker of size 15, on a red line:

pen = pg.mkPen(color=(255, 0, 0))

self.plot_graph.plot(
    time,
    temperature,
    pen=pen,
    symbol="+",
    symbolSize=20,
    symbolBrush="b",
)

In this code, you pass a plus sign to the symbol argument. You also customize the marker size and color. The resulting plot looks something like this:

PyQtGraph plot with a plus sign as a point marker.

In addition to the + plot marker, PyQtGraph supports the markers shown in the table below:

You can use any of these symbols as markers for your data points. If you have more specific marker requirements, then you can also use a QPainterPath object, which allows you to draw completely custom marker shapes.

Plot Titles

Plot titles are important to provide context around what is shown on a given chart. In PyQtGraph, you can add a main plot title using the setTitle() method on the PlotWidget object. Your title can be a regular Python string:

self.plot_graph.setTitle("Temperature vs Time")

You can style your titles and change their font color and size by passing additional arguments to setTitle(). The code below sets the color to blue and the font size to 20 points:

self.plot_graph.setTitle("Temperature vs Time", color="b", size="20pt")

In this line of code, you set the title's font color to blue and the size to 20 points using the color and size arguments of setTitle().

You could've even used CSS style and basic HTML tag syntax if you prefer, although it's less readable:

self.plot_graph.setTitle(
    '<span style="color: blue; font-size: 20pt">Temperature vs Time</span>'
)

In this case, you use a span HTML tag to wrap the title and apply some CSS styles on to of it. The final result is the same as suing the color and size arguments. Your plot will look like this:

PyQtGraph plot with title.

Your plot looks way better now. You can continue customizing it by adding informative lables to both axis.

Axis Labels

When it comes to axis labels, we can use the setLabel() method to create them. This method requires two arguments, position and text.

self.plot_graph.setLabel("left", "Temperature (°C)")
self.plot_graph.setLabel("bottom", "Time (min)")

The position argument can be any one of "left", "right", "top", or "bottom". They define the position of the axis on which the text is placed. The second argument, text is the text you want to use for the label.

You can pass an optional style argument into the setLabel() method. In this case, you need to use valid CSS name-value pairs. To provide these CSS pairs, you can use a dictionary:

styles = {"color": "red", "font-size": "18px"}
self.plot_graph.setLabel("left", "Temperature (°C)", **styles)
self.plot_graph.setLabel("bottom", "Time (min)", **styles)

Here, you first create a dictionary containing CSS pairs. Then you pass this dictionary as an argument to the setLabel() method. Note that you need to use the dictionary unpacking operator to unpack the styles in the method call.

Again, you can use basic HTML syntax and CSS for the labels if you prefer:

self.plot_graph.setLabel(
    "left",
    '<span style="color: red; font-size: 18px">Temperature (°C)</span>'
)
self.plot_graph.setLabel(
    "bottom",
    '<span style="color: red; font-size: 18px">Time (min)</span>'
)

This time, you've passed the styles in a span HTML tag with appropriate CSS styles. In either case, your plot will look something like this:

PyQtGraph plot with axis labels.

Having axis labels highly improves the readability of your plots as you can see in the above example. So, it's a good practice that you should keep in mind when creating your plots.

Plot Legends

In addition to the axis labels and the plot title, you will often want to show a legend identifying what a given line represents. This feature is particularly important when you start adding multiple lines to a plot.

You can add a legend to a plot by calling the addLegend() method on the PlotWidget object. However, for this method to work, you need to provide a name for each line when calling plot().

The example below assigns the name "Temperature Sensor" to the plot() method. This name will be used to identify the line in the legend:

self.plot_graph.addLegend()
# ...
self.plot_graph.plot(
    time,
    temperature,
    name="Temperature Sensor",
    pen=pen,
    symbol="+",
    symbolSize=15,
    symbolBrush="b",
)

Note that you must call addLegend() before you call plot() for the legend to show up. Otherwise, the plot won't show the legend at all. Now your plot will look like the following:

PyQtGraph plot with legend.

The legend appears in the top left by default. If you would like to move it, you can drag and drop the legend elsewhere. You can also specify a default offset by passing a 2-value tuple to the offset parameter when calling the addLegend() method. This will allow you to specify a custom position for the legend.

Background Grid

Adding a background grid can make your plots easier to read, particularly when you're trying to compare relative values against each other. You can turn on the background grid for your plot by calling the showGrid() method on your PlotWidget instance. The method takes two Boolean arguments, x and y:

self.plot_graph.showGrid(x=True, y=True)

In this call to the showGrid() method, you enable the grid lines in both dimensions x and y. Here's how the plot looks now:

PyQtGraph plot with grid.

You can toggle the x and y arguments independently, according to the dimension on which you want to enable the grid lines.

Axis Range

Sometimes, it can be useful to predefine the range of values that is visible on the plot or to lock the axis to a consistent range regardless of the data input. In PyQtGraph, you can do this using the setXRange() and setYRange() methods. They force the plot to only show data within the specified ranges.

Below, we set two ranges, one on each axis. The first argument is the minimum value, and the second is the maximum:

self.plot_graph.setXRange(1, 10)
self.plot_graph.setYRange(20, 40)

The first line of code sets the x-axis to show values between 1 and 10. The second line sets the y-axis to display values between 20 and 40. Here's how this changes the plot:

PyQtGraph plot with axis ranges

Now your plot looks more consistent. The axis show fix scales that are specifically set for the possible range of input data.

Multiple Plot Lines

It is common to have plots that involve more than one dependent variable. In PyQtGraph, you can plot multiple variables in a single chart by calling .plot() multiple times on the same PlotWidget instance.

In the following example, we plot temperatures values from two different sensors. We use the same line style but change the line color. To avoid code repetition, we define a new plot_line() method on our window:

from PyQt5 import QtWidgets
import pyqtgraph as pg

class MainWindow(QtWidgets.QMainWindow):
    def __init__(self):
        super().__init__()

        # Temperature vs time plot
        self.plot_graph = pg.PlotWidget()
        self.setCentralWidget(self.plot_graph)
        self.plot_graph.setBackground("w")
        self.plot_graph.setTitle("Temperature vs Time", color="b", size="20pt")
        styles = {"color": "red", "font-size": "18px"}
        self.plot_graph.setLabel("left", "Temperature (°C)", **styles)
        self.plot_graph.setLabel("bottom", "Time (min)", **styles)
        self.plot_graph.addLegend()
        self.plot_graph.showGrid(x=True, y=True)
        self.plot_graph.setXRange(1, 10)
        self.plot_graph.setYRange(20, 40)
        time = [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
        temperature_1 = [30, 32, 34, 32, 33, 31, 29, 32, 35, 30]
        temperature_2 = [32, 35, 40, 22, 38, 32, 27, 38, 32, 38]
        pen = pg.mkPen(color=(255, 0, 0))
        self.plot_line(
            "Temperature Sensor 1", time, temperature_1, pen, "b"
        )
        pen = pg.mkPen(color=(0, 0, 255))
        self.plot_line(
            "Temperature Sensor 2", time, temperature_2, pen, "r"
        )

    def plot_line(self, name, time, temperature, pen, brush):
        self.plot_graph.plot(
            time,
            temperature,
            name=name,
            pen=pen,
            symbol="+",
            symbolSize=15,
            symbolBrush=brush,
        )

app = QtWidgets.QApplication([])
main = MainWindow()
main.show()
app.exec()

The custom plot_line() method on the main window does the hard work. It accepts a name to set the line name for the plot legend. Then it takes the time and temperature arguments. The pen and brush arguments allow you to tweak other features of the lines.

To plot separate temperature values, we'll create a new list called temperature_2 and populate it with random numbers similar to our old temperature, which now is temperature_1. Here's the plot looks now:

PyQtGrap plot with two lines.

You can play around with the plot_line() method, customizing the markers, line widths, colors, and other parameters.

Creating Dynamic Plots

You can also create dynamic plots with PyQtGraph. The PlotWidget can take new data and update the plot in real time without affecting other elements. To update a plot dynamically, we need a reference to the line object that the plot() method returns.

Once we have the reference to the plot line, we can call the setData() method on the line object to apply the new data. In the example below, we've adapted our temperature vs time plot to accept new temperature measures every minute. Note that we've set the timer to 300 milliseconds so that we don't have to wait an entire minute to see the updates:

from random import randint

import pyqtgraph as pg
from PyQt5 import QtCore, QtWidgets

class MainWindow(QtWidgets.QMainWindow):
    def __init__(self):
        super().__init__()

        # Temperature vs time dynamic plot
        self.plot_graph = pg.PlotWidget()
        self.setCentralWidget(self.plot_graph)
        self.plot_graph.setBackground("w")
        pen = pg.mkPen(color=(255, 0, 0))
        self.plot_graph.setTitle("Temperature vs Time", color="b", size="20pt")
        styles = {"color": "red", "font-size": "18px"}
        self.plot_graph.setLabel("left", "Temperature (°C)", **styles)
        self.plot_graph.setLabel("bottom", "Time (min)", **styles)
        self.plot_graph.addLegend()
        self.plot_graph.showGrid(x=True, y=True)
        self.plot_graph.setYRange(20, 40)
        self.time = list(range(10))
        self.temperature = [randint(20, 40) for _ in range(10)]
        # Get a line reference
        self.line = self.plot_graph.plot(
            self.time,
            self.temperature,
            name="Temperature Sensor",
            pen=pen,
            symbol="+",
            symbolSize=15,
            symbolBrush="b",
        )
        # Add a timer to simulate new temperature measurements
        self.timer = QtCore.QTimer()
        self.timer.setInterval(300)
        self.timer.timeout.connect(self.update_plot)
        self.timer.start()

    def update_plot(self):
        self.time = self.time[1:]
        self.time.append(self.time[-1] + 1)
        self.temperature = self.temperature[1:]
        self.temperature.append(randint(20, 40))
        self.line.setData(self.time, self.temperature)

app = QtWidgets.QApplication([])
main = MainWindow()
main.show()
app.exec()

The first step to creating a dynamic plot is to get a reference to the plot line. In this example, we've used a QTimer object to set the measuring interval. We've connected the update_plot() method with the timer's timeout signal.

Theupdate_plot() method does the work of updating the data in every interval. If you run the app, then you will see a plot with random data scrolling to the left:

The time scale in the x-axis changes as the stream of data provides new values. You can replace the random data with your own real data. You can take the data from a live sensor readout, API, or from any other stream of data. PyQtGraph is performant enough to support multiple simultaneous dynamic plots using this technique.

Conclusion

In this tutorial, you've learned how to draw basic plots with PyQtGraph and customize plot components, such as lines, markers, titles, axis labels, and more. For a complete overview of PyQtGraph methods and capabilities, see the PyQtGraph documentation. The PyQtGraph repository on Github also has a complete set of plot examples.

The complete guide to packaging Python GUI applications with PyInstaller.

Take a look

[[ discount.discount_pc ]]% OFF for the next [[ discount.duration ]] [[discount.description ]] with the code [[ discount.coupon_code ]]

Purchasing Power Parity

Developers in [[ country ]] get [[ discount.discount_pc ]]% OFF on all books & courses with code [[ discount.coupon_code ]]
